Top of the range inflatable pump and waterproof

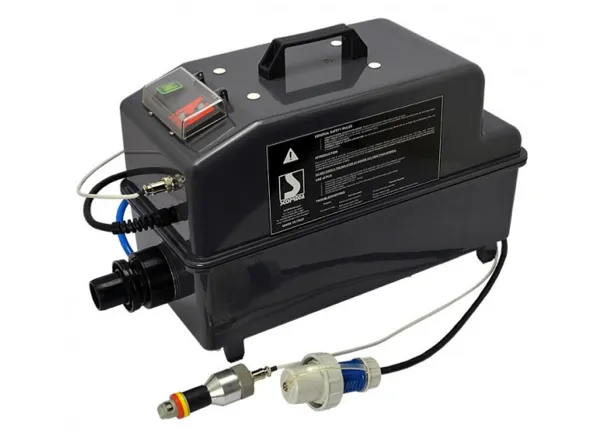

Bravo PCS Pressure Control System 240V Waterproof IP65 Automatic Refilling System is a fully automatic inflation/deflation system for Large Inflatable Air Structures.

Pressure range can be factory set  (1.30 PSI to 6.5 PSI) 90 mbar - 450 mbar

Therefore if the pressure drops below the min setting, the pump automatically cuts in and inflates to the max setting.

Output: 2800 litre/min

Weight 16KG

Special order: Allow 4-6 weeks delivery

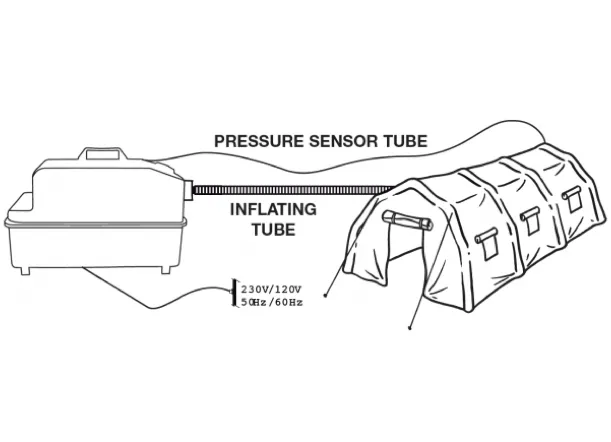

The Inflatable Air Structure requires 2 x Valves to be installed. One Valve monitors the pressure via the Pressure Sensor Cable and the other Valve is for Inflation/Deflation.

We recommend the Bravo 2005 Valve (500126) or the Halkey Roberts Valve (809887) as the Pressure Sensor Valves and the Bravo 260 H.V. (500141) as the Inflation/Deflation Valve.

Also required are the following : Pressure Sensor P/N 502261or 502262 which connects the Pressure Sensor Cable to the Valves, Hose (502301) sold by the metre, Hose Clips x 2 (502302), Bravo 260 H.V. Inflate adaptor (502315) & Valve Tools if required.

See related products below.

Pressure Sensor Cable length 10 metres

Protection degree IP65 according to IEC standard 60529

PS. Allow 4 Weeks for Delivery
