Product Details
＋

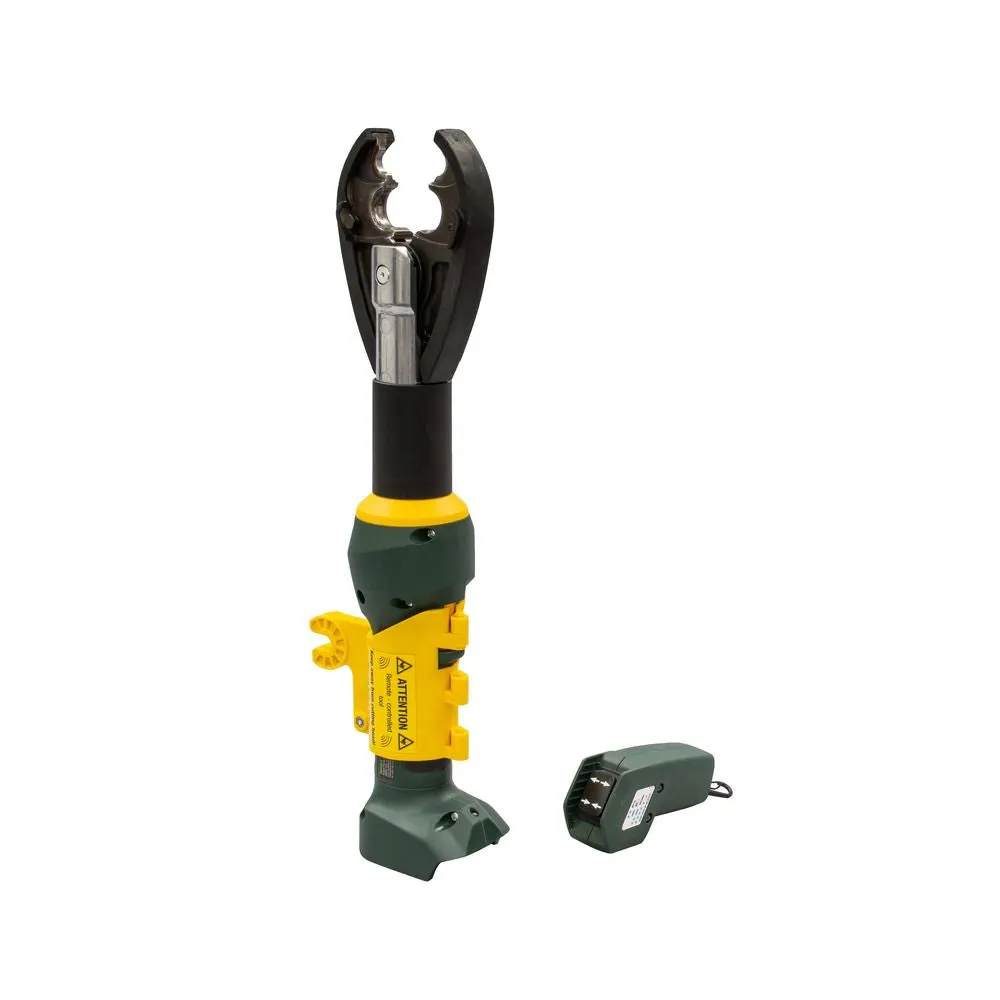

Greenlee EK425LXRDBGB Description
The Greenlee remote cutting and crimping platform was developed in unison with utility professionals, creates a method to help "remove the target" from high voltage applications. Remote capability allows access to hard to reach areas like never before.
Greenlee EK425LXRDBGB Includes
- (1) Crimper/Cutter
- (1) Remote Control
- (1) D3/BG Profile Remote Crimper
Greenlee EK425LXRDBGB Features
- Hot stick adaptor (BTC3-TJ) utilizes standard universal spline interface
- Universal remote control (BTC3GL) can be used with any Greenlee remote crimper/cutter
- Interchangeable heads for a variety of crimping and cutting applications
- Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
- Cutting head rotates 350 degrees
- Uses bio-degradable oil
Greenlee EK425LXRDBGB Specifications
| Crimping Force | 12000 lbs (53 kN) |
| Crimping Capacity | Connector 10-1/0 AWG 5/8" Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR |
| Connector Type | Service Entrance Connectors, H-Taps, Tension Splices, Jumper Splices, Stirrups, Color Coded Lugs & Splices |
| Handle Type | In-line with Over Molded Grip |
| Wire Size | Connector 10-1/0 AWG 5/8" Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR |
| Type | Remote Die Style Crimper |
| Application | 6 Ton Crimping |
| Standard | IEC-62841-1 |
| Overall Length | 17.75" |
